Multiple Choice
Identify the
choice that best completes the statement or answers the question.
|
|
|
1.
|
In the two triangles shown, Ð A and Ð D are  a. | complimentary angles | c. | exterior angles | b. | corresponding angles | d. | inscribed
angles |
|
|
|
2.
|
a. | similar triangles | c. | equal triangles | b. | proportional triangles | d. | corresponding
triangles |
|
|
|
3.
|
A farmer sketched the following layout of a field. He wants to develop a scale
drawing of the field in which 1 cm on the diagram represents 20 m of actual distance. The pipeline
runs across the diagonal of the field. Approximately how long will the line that represents the
pipeline be in the scale diagram?
a. | 4.5 cm | c. | 9.0 cm | b. | 6.4 cm | d. | 12.0 cm |
|
|
|
4.
|

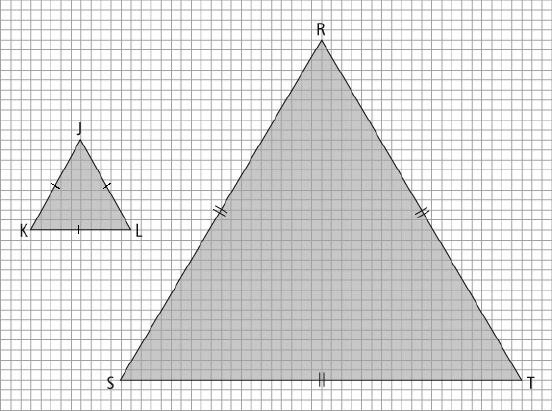

The two triangles shown are  a. | complimentary and equal triangles | c. | equal triangles | b. | equilateral
triangles | d. | similar and
equilateral triangles |
|
|
|
5.
|
How many similar triangles could be formed if you joined all the opposite
vertices so the lines pass through the centre of the figure?
|
|
|
6.
|
How many similar triangles are there in the regular polygone
shown?
|
|
|
7.
|
If you drew a similar polygon to the one shown below, how many sides would the
polygon have?  a. | 6 sides | c. | 18 sides | b. | 12 sides | d. | 24 sides |
|
|
|
8.
|
This polygon has sides that are 1.5 cm each. If a similar polygon was created
using a scale factor of 3, determine the side length of the similar polygon.  a. | 0.5 cm | c. | 3.5 cm | b. | 1.5 cm | d. | 4.5 cm |
|
|
|
9.
|
Compare hexagon A to hexagon B. Hexagon A has  a. | angles that are smaller than the angles in hexagon B | b. | angles that are
proportional to the angles in hexagon B | c. | angles that are larger than the angles in
hexagon B | d. | angles that are equal to the angles in hexagon B |
|
|
|
10.
|
The polygon on the right is similar to the polygon on the left. The angles in
the polygon on the right are  a. | equal to the angles in the polygon on the left | b. | larger than the
angles in the polygon on the left | c. | proportional to the angles in the polygon on
the left | d. | smaller than the angles in the polygon on the left |
|
Short Answer
|
|
|
11.
|

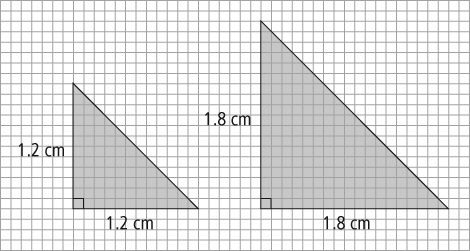

Two triangles are pictured below. Determine if the triangles are similar.
Explain your answer.
|
|
|
12.
|
You have been asked to design new coasters for use in the community hall. The
coasters are to be hexagonal in shape. They need to be 8 cm across between any two opposite sides.
Create a scale drawing of your design, using a scale factor of  .
|
Problem
|
|
|
13.
|
An observer stands 18.2 m from the door of a house, and 2.6 m from the street.
The observer is 1.3 m tall. Calculate the height of the house.
|
|
|
14.
|
Describe how to create an accurate scale diagram of the polygon below using a
scale of 1:3. Then, create and label your diagram.
|
